Navori SA is a Swiss company.For the past 12 years, Navori has focused all its resources on the development and marketing of professional digital signage software applications. During the past 5 years, Navori has seen its revenues increase an average of 60% per year, which is double the market rate. Navori Facts: 1. Navori software products are used in 90 countries. 2. 65 Countries have at least one certified Navori distributor. 3. There are 63,000 Navori Player licenses installed worldwide. 4. Navori is one of the top 5 digital signage software publishers in the world and growing. The Navori digitals signage software platform is used for all types of screen based communications: Advertising networks, retail applications, corporate communications, public space signage, wayfinding, fast food menu boards and more...

NAVORI CONTROLLER v5.2

Navori Controller v5.2is one of the easiest digital signage applications on the market. Import and schedule your content then play it back on a single PC (no network required except for displaying RSS feeds and web pages).

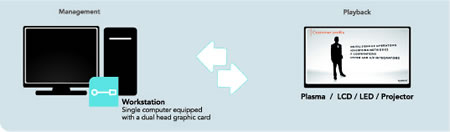

DEPLOYMENT SCHEMATIC:

Mix and match your content on the fly then see it all come alive on screen. Navori Controller v5.2 runs on Windows XP and Vista.

NAVORI SERVER v5.2 • STANDARD EDITION

Navori Server v5.2–Standard Edition is a single-administrator solution capable of running a network of up to 200 PC Players via private LAN or FTP (internet). Navori Server v5.2 - Standard Edition is an affordable, self-hosted digital signage solution for small to medium sized networks. There are no ongoing monthly fees to deal with. Simply purchase your license, install on a Windows XP or Vista equipped PC and start managing your network of Navori Players.
Ideal for: Restaurant menu boards, corporate communications, hotel lobbies, car dealership show rooms, educational TV, casino signage, point-of-sale signage and more… Navori Server v5.2–Standard Edition is both powerful and easy to use.

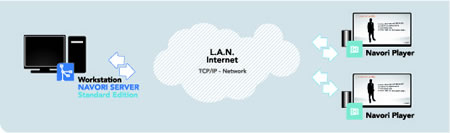

DEPLOYMENT SCHEMATIC:

Navori Server v5.2–Standard Edition runs on Windows 7, Vista and XP (all versions, 32 and 64 bit).

NAVORI PLAYER v5.2

NAVORI PLAYER v5.2 is a single-administrator solution capable of running a network of up to 200 PC Players via private LAN or FTP (internet). Navori Server v5.2 - Standard Edition is an affordable, self-hosted digital signage solution for small to medium sized networks. There are no ongoing monthly fees to deal with. Simply purchase your license, install on a Windows XP or Vista equipped PC and start managing your network of Navori Players.
Ideal for: Restaurant menu boards, corporate communications, hotel lobbies, car dealership show rooms, educational TV, casino signage, point-of-sale signage and more… Navori Server v5.2–Standard Edition is both powerful and easy to use.

DEPLOYMENT SCHEMATIC:

Navori Player v5.2 runs on Windows 7, Vista and XP (all versions, 32 and 64 bit).
Navori Player v5.2 supports all types of multimedia content.

NAVORI SERVER v5.2 • ENTERPRISE EDITION

Navori Server v5.2–Enterprise Edition is a multi-administrator solution capable of running a network of thousands of PC Players via private LAN or FTP (internet). Navori Server v5.2–Enterprise Edition is an affordable, self-hosted digital signage solution for medium to large sized networks. There are no ongoing monthly fees to deal with. Simply purchase your license, install on a Windows Server PC* and start managing your network of Navori Players.
(*also requires MS-SQL Server and IIS Server)

Administrative hierarchy:

1. Navori Server v5.2–Enterprise Edition = Master Administrator. Can perform all administrative duties.
2. Navori Windows Manager v5.2 = LAN Group Administrator. Can perform all administrative duties except modify any communications parameters or transfer Players from one Group to another. Windows Manager dashboard is nearly identical to the Server’s and all information is shared between modules in real time. Can only be used on a LAN based network.
3. Navori Web Manager v5.2 Add-on = Remote Group Administrator. Can perform most administrative duties except modify any communications parameters, transfer Players from one Group to another and create Mosaics (edit only). The Web Manager features a simplified web based interface and all information is shared between modules in real time. Can only be used on an Internet based network (FTP).
Ideal for: Restaurant menu boards, corporate communications, hotel lobbies, car dealership show rooms, educational TV, casino signage, point-of-sale signage and more… Navori Server 5–Enterprise Edition is both powerful and easy to use. Navori Server v5.2–Enterprise Edition runs on Windows 2003 or 2008 Server and requires Microsoft SQL Server and IIS Server.

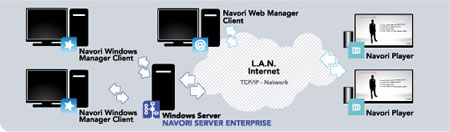

DEPLOYMENT SCHEMATIC:

DIGITAL TV TUNER MODULE v1

The Digital TV Tuner Module is an optional add-on for PCs running Navori Player v5. In enables these PCs to display high quality digital content from over-the-air or external video sources. All DirectX TV Tuner cards are supported and this module is compatible with all Navori products

NAVORI EXTENDED WATCHDOG v5.2

Navori Extended Watchdog v5.2 is an optional module for PCs running Navori Player v5.2. The application runs in background and performs the following tasks:

• Ensures Navori Player is running within specific parameters.
• Ensures the Player PC is communicating properly and alerts the administrator if it is not.
• Communicates the following information back to the Navori Server in near real-time*:
* Which Playlist is currently running on the Player.
* The following Windows parameters: Available RAM, Handles, GDI and Threads.
* Displays a visual alert if Player is not communicating properly or if it has exceeded any of the preset memory parameters.

• Sends out an e-mail alert in case problem cannot be resolved and describes the nature of the issue.

Navori Extended Watchdog monitors the health of your Player PC.

NAVORI REMOTE BOOST TRIGGER MODULE

The Navori Remote Boost Trigger Module is a software add-on that will launch specific media clips across one or more Navori Players on demand. The triggered content will supercede all currently scheduled media currently playing on your Players for a preset period. Once the Boost Media has completed its cycle, Players automatically return to the currently scheduled content.

Users may also create Boost Media events that run indefinitely until a second code is sent to the Players, effectively restoring the previously scheduled media.

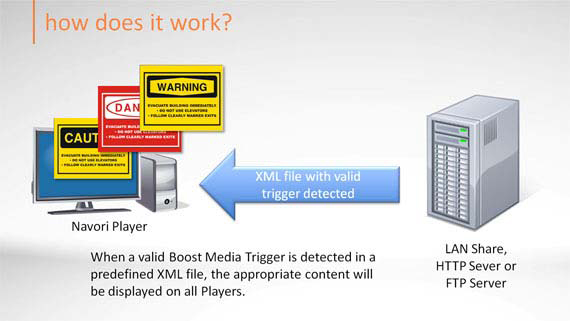

Remote Boost Media events are launched using keyboard trigger codes embedded in an XML file. When the XML file is detected, the respective Boost Media clip is launched and replaces the currently scheduled content. All Boost Media settings configurable in Navori Controller, Navori Server or Navori Windows Manager are supported. You may select any media clip in your library, assign a temporary crawling text banner with a specific message and define the number of times the content will loop once the trigger is detected.

Here are a few potential uses for the Navori Remote Boost Trigger Module:

Security Systems: Fire alarms, intruder monitoring systems and motion sensors can be configured to generate an automated XML file that will flash an alert across all networked screens.

Law Enforcement: Law enforcement organisations can trigger Amber alerts or public service messages across city-wide networks from a central location. These events do not need to be scheduled in advance. They are triggered as needed across all screens from a central location unsing XML.

Casinos and lottery outlets:Slot machines and lottery kiosks can be interfaced with a display network so that winners automatically trigger a site-wide announcement.

Retail Store and Mall Operators: RFID tags attached to merchandise or packaging can be detected by sensors installed throughout a building. When a shopper carries one of these items near a sensor an XML file is generated triggering a specific message or advertisement on the instore screen network.

Car Dealership Owners: Customer service associates interact with an online application that notifies customers their vehicles are ready via the dealership’s screen network. The system is driven by XML from a central location.

Call Center Operators: Special announcements can be displayed across a screen network when specific parameters are detected (specific sales targets reached, number of calls exceeded, etc…).

Hospital Administrators: Patient notices can be delivered across one or more building via networked screens.
